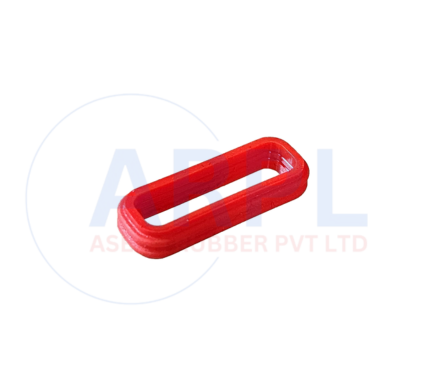

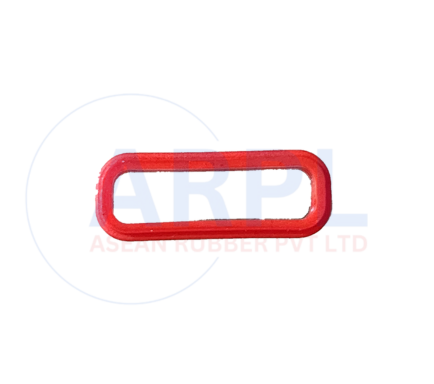

Custom Red Silicone Connector Seal

Custom Silicone Connector Seal Manufacturer – High Temperature Automotive Sealing

ARPL manufactures custom red silicone connector seals for automotive wiring harness applications requiring high temperature performance and custom configurations. As a leading custom connector seal manufacturer in India, we develop bespoke connector seals from customer drawings or sample parts, supporting OEM and Tier-1 wiring harness manufacturers with full PPAP documentation and automotive quality standards.

Custom silicone connector seals are developed for specific connector housings where standard products are not available. This high temperature silicone connector seal provides IP67/IP68 waterproof protection for sensitive electrical connections. Applications include exhaust gas temperature sensor connector seal, turbocharger and EGR connector seal, DPF sensor connector seal, SCR system connector seal, EV battery connector seal, EV motor controller connector seal, and any custom application where temperatures exceed 120°C.

VMQ, HCR and LSR Silicone Material Options

This custom silicone connector seal is available in VMQ silicone, HCR silicone (High Consistency Rubber), and LSR (Liquid Silicone Rubber) depending on production volumes and design requirements. All silicone variants provide excellent high temperature performance for demanding automotive applications.

• High Temperature Silicone -55°C to +200°C: Continuous operation with intermittent capability to +230°C
• UV and Ozone Resistant: Excellent weathering resistance for exterior automotive connector seal applications
• Low Compression Set: Maintains sealing force over extended periods under thermal cycling
• High Voltage Compatible: Good dielectric properties for EV connector seal applications
• RoHS and REACH Compliant: Meeting automotive environmental standards

ARPL also offers alternative materials for custom connector seal development: NBR for oil/fuel resistance (-40°C to +120°C), EPDM for weather/ozone resistance, HNBR for combined oil resistance and higher temperature, and FKM (Viton) for extreme chemical and temperature resistance.

Custom Development Process

ARPL's custom connector seal development process includes design review from customer drawings or sample parts, material selection guidance, tooling development, prototype sampling, PPAP documentation, and production release. Our ISO 9001 and IATF 16949 certified facility ensures automotive quality standards throughout the development cycle.

Related Sealing Products

Explore our custom NBR connector seals for oil-resistant applications, rubber grommets for wiring protection, rubber O-rings and sealing rings, and rubber gaskets and sealing solutions.

Industry Applications for Custom Silicone Connector Seals

Custom red silicone connector seals are engineered to provide reliable IP67/IP68 waterproof protection across demanding high-temperature automotive, commercial vehicle, and EV applications. Custom silicone connector seals are developed for specific OEM connector housings where standard products are not available, ensuring optimal sealing performance for unique application requirements.

Vehicle Segment Applications

ARPL develops custom silicone connector seals for OEMs and Tier-1 wiring harness manufacturers serving diverse vehicle segments with high-temperature requirements:

• Passenger Cars: Exhaust sensors, turbocharger connectors, and underhood high-temperature applications
• Commercial Vehicles: DPF/SCR sensor connectors, exhaust aftertreatment system connectors for trucks and buses
• Electric Vehicles (EV): Battery management system (BMS), motor controller, inverter, and DC fast charging connectors
• Hybrid Electric Vehicles (HEV/PHEV): High-voltage connectors, regenerative braking sensors, and thermal management systems
• Motorcycles: Exhaust sensor connectors, exposed wiring harness applications requiring UV resistance
• Off-Highway Vehicles: Construction and agricultural equipment with high-temperature engine and exhaust applications

High-Temperature Operating Environments

Silicone connector seals excel in environments where extreme temperatures are encountered:

• Exhaust Gas Temperature (EGT) Sensors: Operating at +200°C continuous near exhaust manifold and turbocharger
• Turbocharger Actuator Connectors: Exposed to radiant heat from turbo housing (150°C to 200°C)
• EGR Valve & Cooler Connectors: High exhaust gas temperatures in emissions control systems
• Diesel Particulate Filter (DPF) Sensors: Temperature and pressure sensors in exhaust aftertreatment
• SCR System Connectors: AdBlue/DEF dosing unit and NOx sensor connectors
• Lambda/Oxygen Sensors: Pre-cat and post-cat O2 sensor connectors near exhaust
• EV Motor Controllers: High-voltage connectors in thermally demanding motor and inverter applications
• Exterior Connectors: UV-exposed lighting, antenna, and sensor connectors requiring weathering resistance

Custom Development Capabilities

ARPL develops custom silicone connector seals to customer specifications for major automotive connector systems used globally by OEMs and Tier-1 suppliers:

• Custom development from customer drawings or sample parts
• In-house tooling design and manufacturing for rapid prototyping
• VMQ, HCR silicone, and LSR material options based on volume requirements
• Multiple wire gauge accommodations and pole configurations
• Full PPAP documentation support for automotive programs

Industry Standards & Compliance

Our silicone connector seals are manufactured to meet stringent automotive industry requirements:

• IP67/IP68 Protection: Dust-tight and water immersion resistant when properly installed
• Temperature Range: -55°C to +200°C continuous operation
• Material Compliance: RoHS compliant, REACH compliant, ELV compliant
• Quality Certification: Manufactured under ISO 9001:2015 and IATF 16949:2016 quality management systems
• Automotive Testing: Tested per OEM specifications for compression set, thermal aging, and weathering
• PPAP Support: Full Production Part Approval Process documentation available

Why Choose Silicone Material for Connector Seals?

Silicone Rubber (VMQ) is the preferred elastomer for high-temperature automotive connector seals due to its unique combination of properties:

• Extreme Temperature Range: Operates from -55°C to +200°C continuous, with intermittent capability to +230°C
• UV and Ozone Resistance: Excellent weathering resistance for exterior and exposed applications
• Low Compression Set: Maintains sealing force over extended periods even under thermal cycling
• Excellent Low-Temperature Flexibility: Remains flexible in extreme cold where other materials become brittle
• Electrical Insulation: Good dielectric properties for high-voltage EV applications
• Long Service Life: Resistant to aging, oxidation, and degradation over time

Looking for a different material? ARPL also manufactures connector seals in NBR for oil-resistant applications (-40°C to +120°C), EPDM for weather sealing, HNBR for combined oil resistance and higher temperature, and FKM (Viton) for extreme chemical and temperature resistance. Contact our engineering team for material selection assistance.
