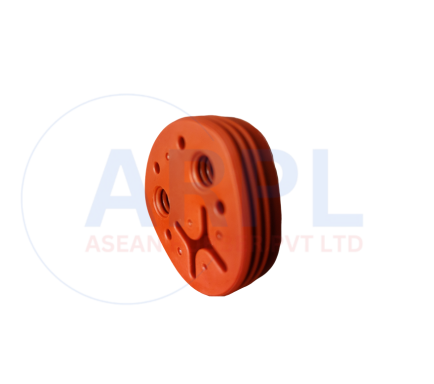

Battery Seal Red Silicone Connector Seal

Battery Connector Seal Manufacturer – EV Battery Silicone Connector Seal

ARPL manufactures high-quality battery connector seal and EV battery connector seal products for electric vehicle applications. As a leading battery connector seal manufacturer in India, we supply EV connector seal and high voltage connector seal products to OEM and Tier-1 manufacturers globally. This silicone battery seal provides essential IP67 IP68 waterproof protection for electric vehicle battery systems.

The battery connector seal is installed inside EV battery connector housings where it seals around individual high voltage cables. This waterproof battery connector seal prevents ingress of water, dust, and contaminants critical for battery pack integrity. Applications include EV battery pack connectors, high voltage distribution unit connectors, motor controller connector seal, DC-DC converter connectors, onboard charger connectors, and any high voltage connector seal application.

Silicone Material Options for EV Applications

This EV battery connector seal is available in multiple silicone formulations optimized for high voltage and electric vehicle requirements.

• VMQ Silicone Battery Seal: General purpose silicone, -55°C to +200°C with excellent dielectric properties
• HCR Silicone Battery Seal: High Consistency Rubber for compression/transfer moulding
• LSR Battery Connector Seal: Liquid Silicone Rubber for injection moulding, ideal for high-volume EV production
• Excellent Dielectric Properties: High electrical insulation for high voltage connector applications
• Low Compression Set: Maintains sealing force under thermal cycling in battery environments

All battery connector seal products meet RoHS and REACH compliance requirements for EV applications.

Why Choose ARPL – EV Battery Connector Seal Manufacturer

With over 30 years as an ISO 9001 and IATF 16949 certified manufacturer, ARPL delivers precision battery connector seal products for the growing EV market. We provide high-precision tooling, flash control with cryogenic deflashing, and full PPAP support for EV battery connector seal applications.

Related Sealing Products

Explore our complete range of connector seals, rubber grommets for wiring protection, rubber O-rings and sealing rings, and rubber gaskets and sealing solutions.

Industry Applications for EV Battery Connector Seals

Our Battery Seal Red Silicone Connector Seal is engineered to provide reliable IP67 IP68 waterproof protection across demanding electric vehicle and high voltage applications. This EV battery connector seal is ideal for battery packs, high voltage distribution units, motor controllers, and any application requiring waterproof silicone seals with excellent dielectric properties.

Vehicle Segment Applications

ARPL supplies silicone connector seals to OEMs and Tier-1 wiring harness manufacturers serving diverse vehicle segments with high-temperature requirements:

• Passenger Cars: Exhaust sensors, turbocharger connectors, and underhood high-temperature applications
• Commercial Vehicles: DPF/SCR sensor connectors, exhaust aftertreatment system connectors for trucks and buses
• Electric Vehicles (EV): Battery management system (BMS), motor controller, inverter, and DC fast charging connectors
• Hybrid Electric Vehicles (HEV/PHEV): High-voltage connectors, regenerative braking sensors, and thermal management systems
• Motorcycles: Exhaust sensor connectors, exposed wiring harness applications requiring UV resistance
• Off-Highway Vehicles: Construction and agricultural equipment with high-temperature engine and exhaust applications

High-Temperature Operating Environments

Silicone connector seals excel in environments where extreme temperatures are encountered:

• Exhaust Gas Temperature (EGT) Sensors: Operating at +200°C continuous near exhaust manifold and turbocharger
• Turbocharger Actuator Connectors: Exposed to radiant heat from turbo housing (150°C to 200°C)
• EGR Valve & Cooler Connectors: High exhaust gas temperatures in emissions control systems
• Diesel Particulate Filter (DPF) Sensors: Temperature and pressure sensors in exhaust aftertreatment
• SCR System Connectors: AdBlue/DEF dosing unit and NOx sensor connectors
• Lambda/Oxygen Sensors: Pre-cat and post-cat O2 sensor connectors near exhaust
• EV Motor Controllers: High-voltage connectors in thermally demanding motor and inverter applications
• Exterior Connectors: UV-exposed lighting, antenna, and sensor connectors requiring weathering resistance

OEM Connector System Compatibility

ARPL develops silicone connector cavity seals compatible with major automotive connector systems used globally by OEMs and Tier-1 suppliers:

• Compatible with standard 2-way female connector housings from leading connector manufacturers
• Custom development available for proprietary OEM connector designs
• Supports single-wire and multi-wire sealing configurations
• Available in multiple wire gauge accommodations (0.5mm² to 2.5mm² typical)
• Designed to meet automotive connector sealing standards including USCAR, LV214, and OEM-specific requirements

Industry Standards & Compliance

Our silicone connector seals are manufactured to meet stringent automotive industry requirements:

• IP67/IP68 Protection: Dust-tight and water immersion resistant when properly installed
• Temperature Range: -55°C to +200°C continuous operation
• Material Compliance: RoHS compliant, REACH compliant, ELV compliant
• Quality Certification: Manufactured under ISO 9001:2015 and IATF 16949:2016 quality management systems
• Automotive Testing: Tested per OEM specifications for compression set, thermal aging, and weathering
• PPAP Support: Full Production Part Approval Process documentation available

Why Choose Silicone Material for Connector Seals?

Silicone Rubber (VMQ) is the preferred elastomer for high-temperature automotive connector seals due to its unique combination of properties:

• Extreme Temperature Range: Operates from -55°C to +200°C continuous, with intermittent capability to +230°C
• UV and Ozone Resistance: Excellent weathering resistance for exterior and exposed applications
• Low Compression Set: Maintains sealing force over extended periods even under thermal cycling
• Excellent Low-Temperature Flexibility: Remains flexible in extreme cold where other materials become brittle
• Electrical Insulation: Good dielectric properties for high-voltage EV applications
• Long Service Life: Resistant to aging, oxidation, and degradation over time

Looking for a different material? ARPL also manufactures connector seals in NBR for oil-resistant applications (-40°C to +120°C), EPDM for weather sealing, HNBR for combined oil resistance and higher temperature, and FKM (Viton) for extreme chemical and temperature resistance. Contact our engineering team for material selection assistance.
