Rubber Bushing Manufacturer - Suspension Bush, Silent Block & Bonded Bush for NVH Control
ARPL manufactures rubber-to-metal bonded bushings for automotive suspension and chassis systems. Our bushings connect control arms, stabilizer bars, trailing arms, and subframes to the vehicle body — absorbing vibrations, controlling articulation, and isolating road noise. Chemically bonded for permanent adhesion and consistent NVH performance. ISO 9001:2015 certified manufacturing at IMT Manesar, Haryana.
Bushing Types

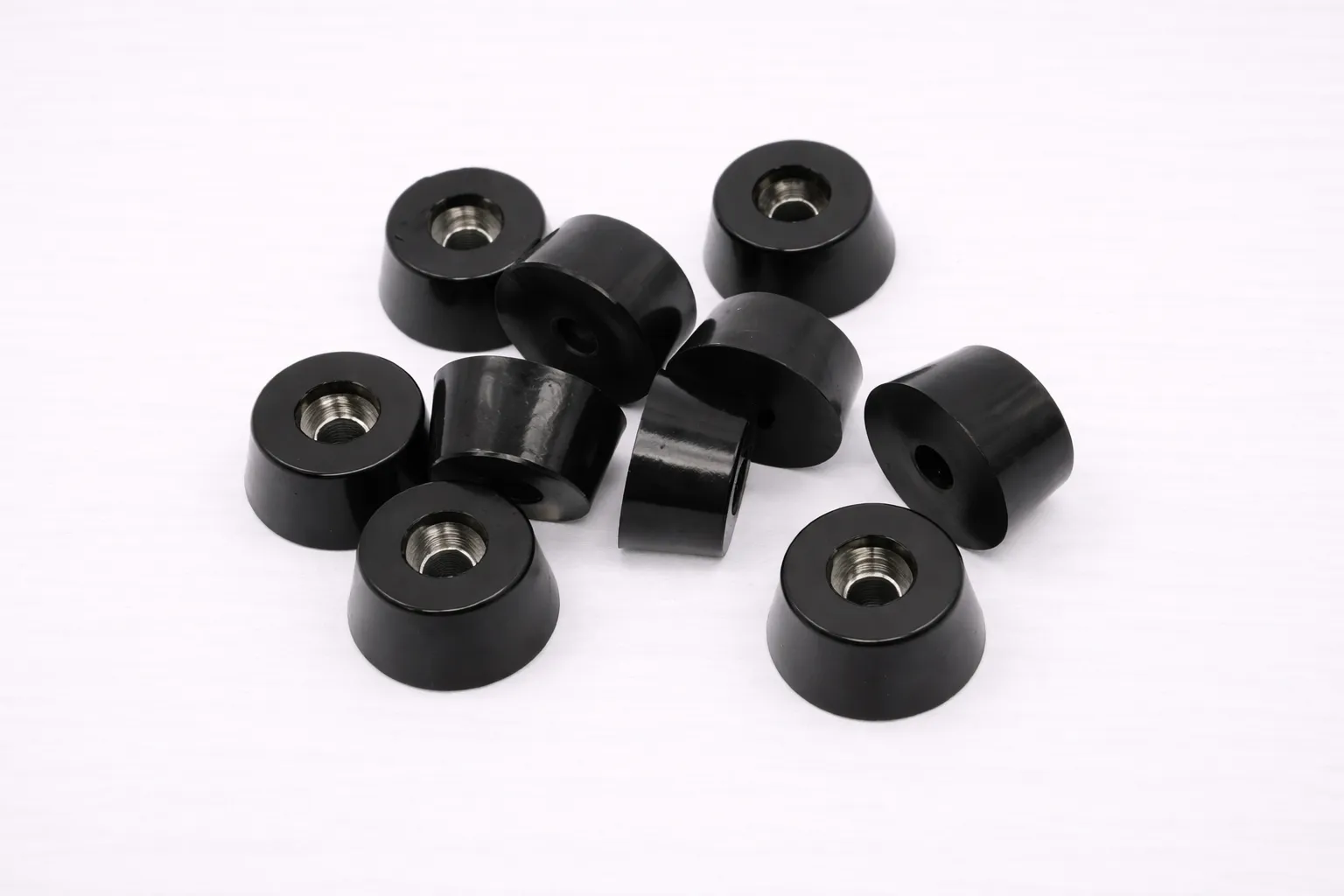

Suspension Bushings for Automotive OEMs
Rubber bushings are the pivot points of every suspension system. They allow controlled rotational and angular movement between suspension linkages while absorbing vibration, damping shock, and preventing metal-to-metal contact. A typical passenger car uses 30 to 50 rubber bushings across its suspension, steering, and chassis systems — making them one of the most critical and highest-volume rubber-to-metal bonded components in the vehicle.
ARPL manufactures bonded suspension bushings at IMT Manesar, Haryana using Natural Rubber (NR) compounds engineered for high resilience, low compression set, and extended fatigue life under the demanding conditions of Indian and global road surfaces. We serve OEMs and Tier-1 suppliers across Delhi NCR, Pune, Chennai, Bengaluru, and worldwide.
Bushing Specifications & Capabilities
ARPL designs rubber bushings to meet OEM radial rate, axial rate, torsional stiffness, and fatigue life requirements. Every bushing is validated for dimensional accuracy, hardness, bond strength, and load-deflection performance.
Key Performance Parameters
- Rubber compound: Natural Rubber (NR) — highest resilience and fatigue life for dynamic suspension applications. EPDM for weather-exposed locations, CR for oil resistance, PU for high-stiffness performance applications.
- Hardness: 40 to 75 Shore A — 40-55 Shore A for ride comfort in passenger vehicles; 60-75 Shore A for heavy-duty and performance applications
- Temperature range: -40°C to +100°C — engineered for all climatic conditions from extreme cold to under-body heat
- Configuration: Inner sleeve + rubber + outer sleeve — rubber chemically bonded to both metal sleeves during vulcanization for permanent adhesion
- Stiffness control: Radial, axial, torsional — void patterns, rubber geometry, and compound selection used to tune directional stiffness ratios per OEM requirement
- Metal: Mild steel (zinc/phosphate plated), aluminum — corrosion-protected inner and outer sleeves for full vehicle life
- Bond strength: "R" failure mode — rubber tears before bond fails, confirmed by destructive peel testing per lot
Bushing Design Features
- Void patterns — strategically placed voids in the rubber reduce stiffness in specific directions, allowing independent tuning of radial vs. torsional rates
- Interleaved metal — intermediate metal plates bonded within the rubber layer create progressive stiffness for improved load control
- Flanged designs — integrated rubber flanges provide axial retention and additional vibration isolation without separate washers
- Offset bushings — eccentric inner sleeve positioning enables camber or caster correction built into the bushing geometry
Compound Comparison for Bushings
| Compound | Temp. Range | Resilience | Fatigue Life | Weather | Best For |
|---|---|---|---|---|---|
| NR | -40 to +80°C | Excellent | Excellent | Fair | Control arm, trailing arm, subframe bushings (most common) |
| EPDM | -50 to +150°C | Good | Good | Excellent | Exposed stabilizer bar bushings, exterior mounts |
| CR | -35 to +120°C | Good | Good | Good | Oil-exposed underbody bushings |
| PU | -30 to +80°C | Fair | Good | Fair | Performance/sport applications, high-stiffness bushings |
Bushing Applications
ARPL's rubber bushings are used in every major suspension and chassis system across passenger vehicles, commercial vehicles, and off-highway equipment.
Passenger Cars & SUVs
Upper and lower control arm bushings, stabilizer bar bushings, trailing arm bushings, link arm bushings, and subframe mounts for independent front and rear suspension systems. Tuned for ride comfort and NVH refinement across standard and rough road conditions common on Indian roads.
Commercial Vehicles & Trucks
Heavy-duty suspension bushings, leaf spring eye bushings, shackle bushings, stabilizer bar bushings, and cab mount bushings for trucks, buses, and LCVs. Higher durometer compounds designed for extended service life under heavy payload and continuous commercial operation.
Construction & Off-Highway
Large-diameter bushings for boom pivots, bucket linkages, track adjuster cushions, and axle mounts on excavators, loaders, dozers, and agricultural equipment. High-load NR and PU compounds for extreme operating conditions.
Aftermarket & Replacement
OE-quality replacement suspension bushings manufactured to original OEM specifications. Direct-fit bushings for popular Indian and global vehicle platforms.
Global Export Markets
ARPL exports rubber bushings from Manesar, Haryana to OEMs and Tier-1 suppliers in the USA, Germany, UK, France, Italy, Japan, South Korea, Taiwan, UAE, Saudi Arabia, Turkey, Canada, Mexico, and Sweden.
Request a Quote
Get a custom quote for your rubber bushing requirements
Related Products
Frequently Asked Questions
Find answers to common questions about rubber bushings
Rubber bushings are rubber-to-metal bonded cylindrical components that connect suspension linkages to the vehicle chassis. They consist of an inner metal sleeve, a rubber element, and an outer metal sleeve bonded together during vulcanization. Bushings allow controlled rotational and angular movement between parts while absorbing road vibration, damping shock, reducing noise, and preventing metal-to-metal contact.
ARPL manufactures control arm bushings (upper and lower), stabilizer bar bushings, trailing arm bushings, link arm bushings, subframe mounts, and silent blocks for passenger cars, SUVs, trucks, and commercial vehicles at our ISO 9001:2015 certified facility in IMT Manesar, Gurugram, Haryana.
Bonded bushings have rubber chemically bonded to both inner and outer metal sleeves during vulcanization, creating a permanent integral unit with superior fatigue life and precise stiffness control. Press-fit bushings use interference fit to hold the rubber in place without chemical bonding. ARPL specializes in bonded bushings for OEM applications where consistent NVH performance and long service life are required.
Natural Rubber (NR) is the standard OEM compound for suspension bushings due to its excellent resilience, fatigue resistance, and vibration isolation properties. EPDM is used for exterior-exposed bushings requiring weather and ozone resistance. Neoprene (CR) is selected for oil-exposed locations. Polyurethane (PU) provides higher stiffness for performance applications but transmits more vibration to the cabin.
A typical passenger car contains 30 to 50 rubber bushings across its suspension, steering, and chassis systems. This includes control arm bushings, stabilizer bar bushings, trailing arm bushings, subframe bushings, steering rack bushings, and various link bushings. The exact count depends on the suspension type and vehicle platform.
Every production lot undergoes destructive adhesion testing confirming "R" failure mode, hardness verification, dimensional inspection, and load-deflection testing to validate radial and axial stiffness against OEM specifications. All processes are controlled under ISO 9001:2015 quality management at our IMT Manesar facility.
Please share: bushing type (control arm, stabilizer bar, trailing arm, etc.), inner and outer diameter, length, rubber compound preference, hardness specification (Shore A), stiffness requirements (radial/axial/torsional rates), bonded or press-fit, vehicle platform or OEM part number, drawing or sample, and annual volume estimate.
Yes. ARPL exports rubber bushings from Manesar, Haryana to OEMs and Tier-1 suppliers in USA, Germany, UK, France, Italy, Japan, South Korea, Taiwan, UAE, Saudi Arabia, Turkey, Canada, Mexico, Sweden, and Netherlands.
