EV Rubber Components
ARPL manufactures precision-molded rubber parts for electric vehicles and energy storage systems — covering battery enclosures, wiring harness interfaces, thermal-management assemblies, and NVH isolation points. We support prototype-to-series supply for Tier-1s, OEMs, and system integrators in India and global markets.
EV Components We Manufacture
Available elastomers include EPDM, silicone (VMQ), fluorosilicone (FVMQ), FKM, HNBR, NBR and specialty compounds — selected based on temperature range, chemical exposure, compression set targets, and IP sealing needs.
EV Rubber Components for Sealing, Isolation & Protection
ARPL manufactures precision-molded rubber components for electric vehicles and energy storage systems — covering battery enclosures, HV/LV connector interfaces, thermal management assemblies, and NVH isolation points. We support prototype-to-series supply for OEMs, Tier-1 suppliers, and system integrators worldwide.
Every rubber part in an EV operates under a unique combination of thermal cycling, vibration, chemical exposure, and ingress protection demands. Our engineering team works with your design data to select the right elastomer, optimize cross-section geometry, and validate sealing performance before tooling — reducing development cycles and avoiding costly field failures.
Components We Supply for EV Programs
- Battery pack gaskets & seals — lid/tray gaskets, IP67/IP68 seals, vent seals, service panel gaskets

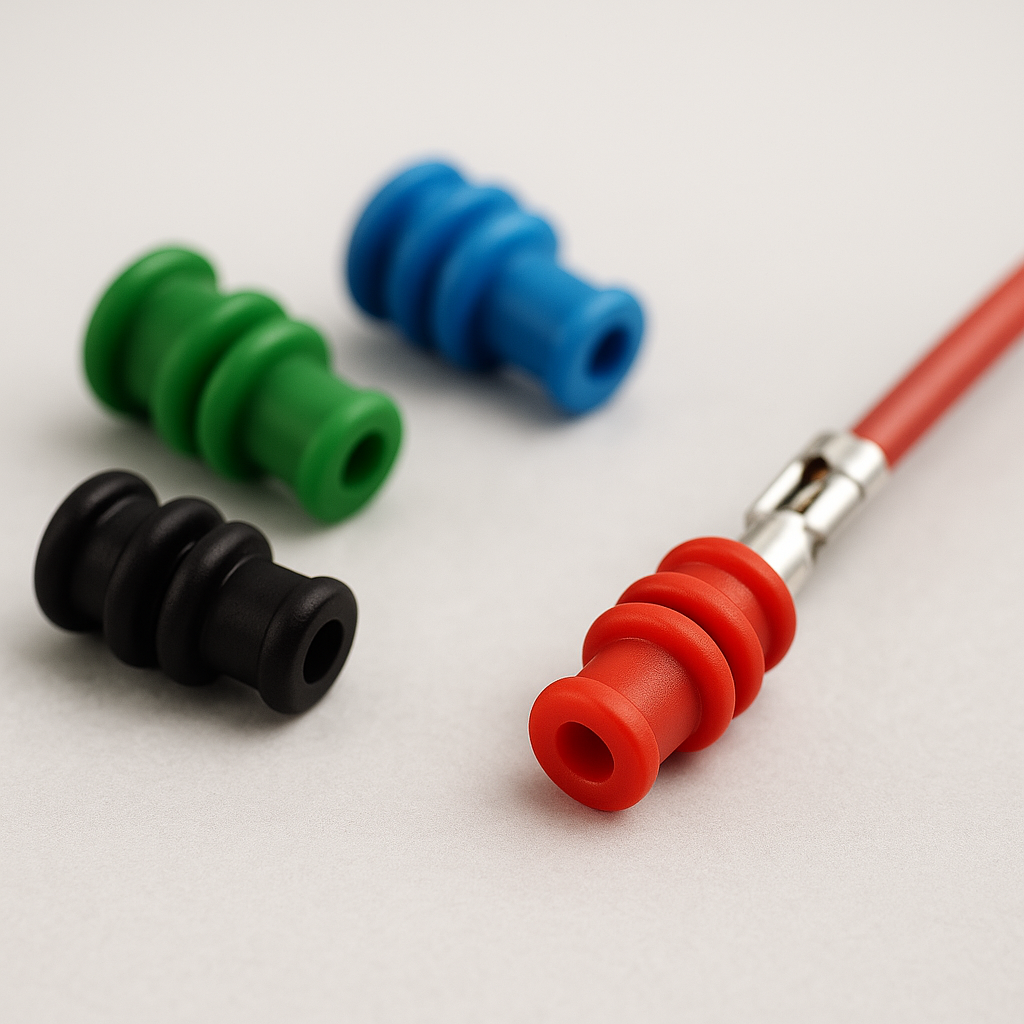

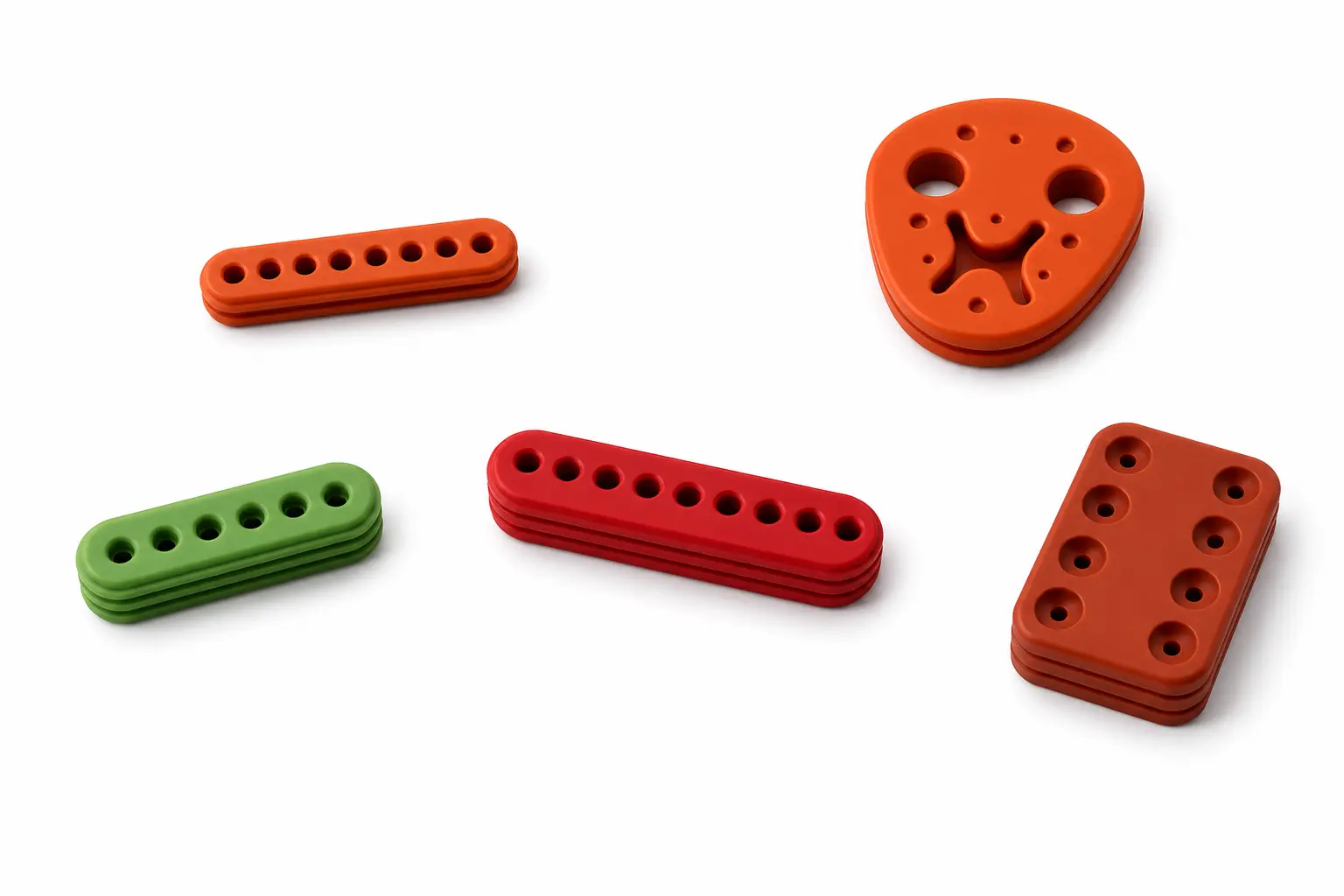

- Connector seals & wire seals — single-wire and multi-cavity seals for HV/LV harness connectors

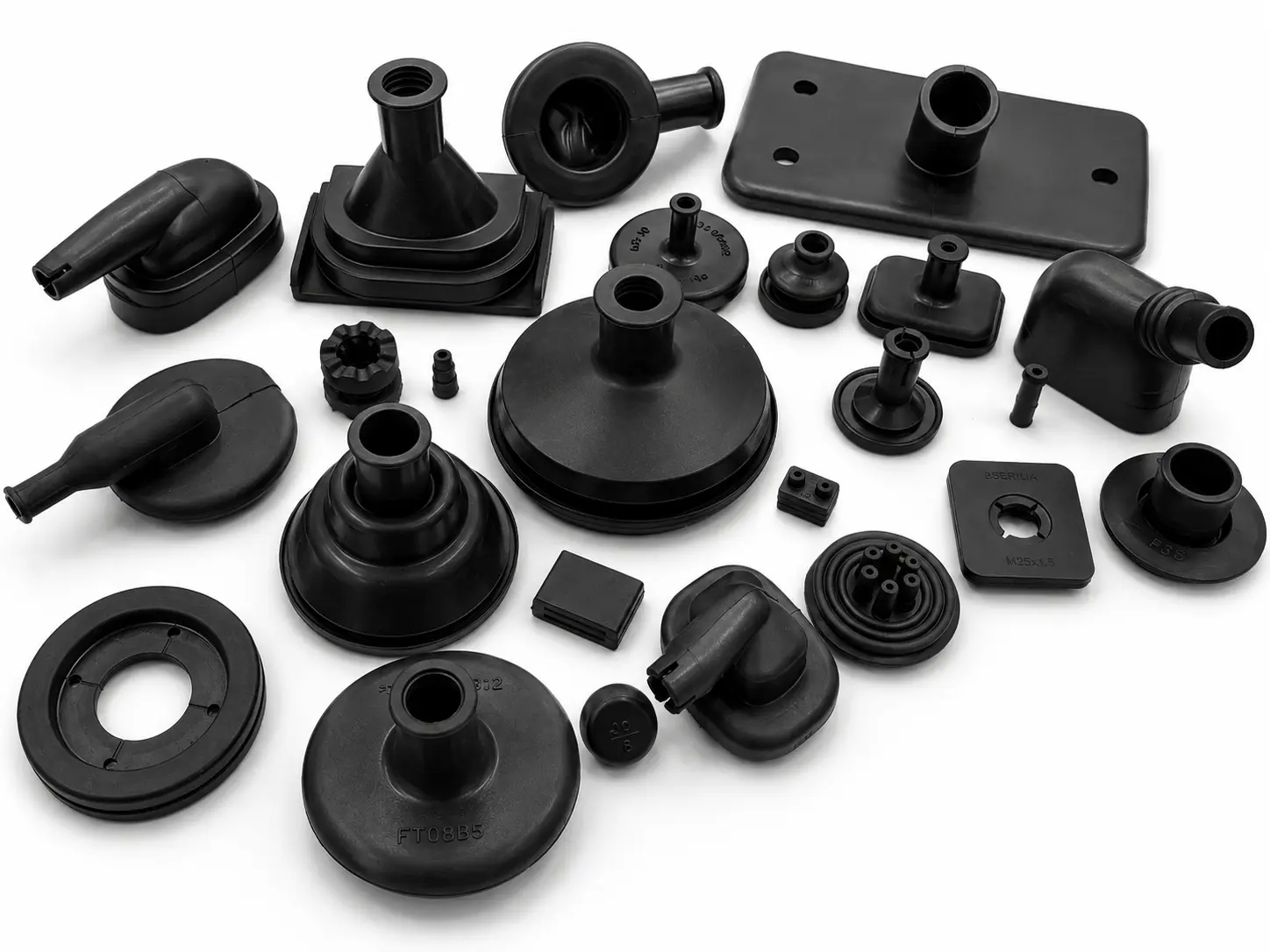

- Grommets — single-hole and multi-hole cable pass-through grommets for wiring harnesses

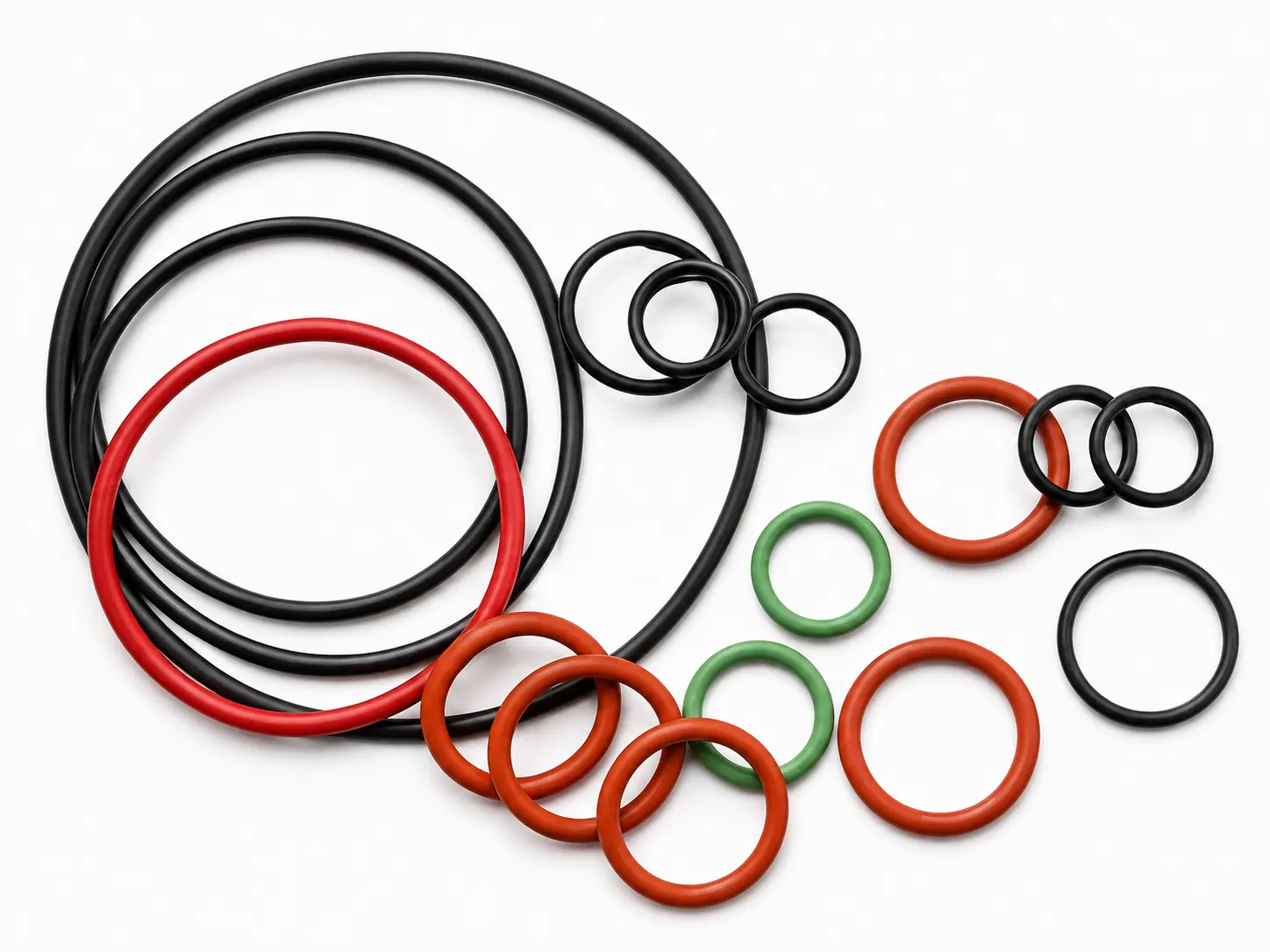

- O-rings — precision O-rings for motor housings, inverter covers, battery coolant circuits

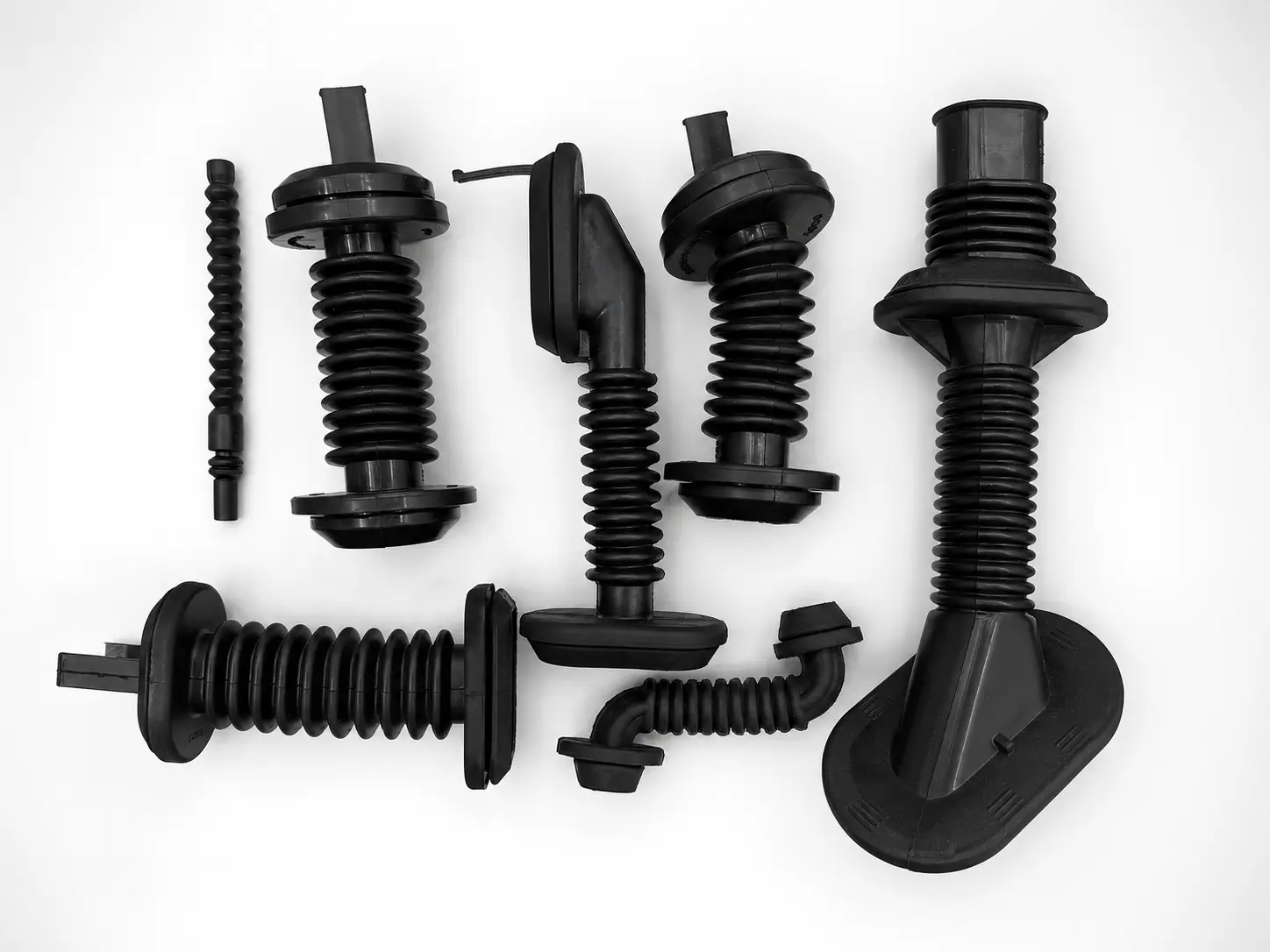

- Rubber bellows & boots — protective covers for CV joints, motor shafts, and charging cable assemblies

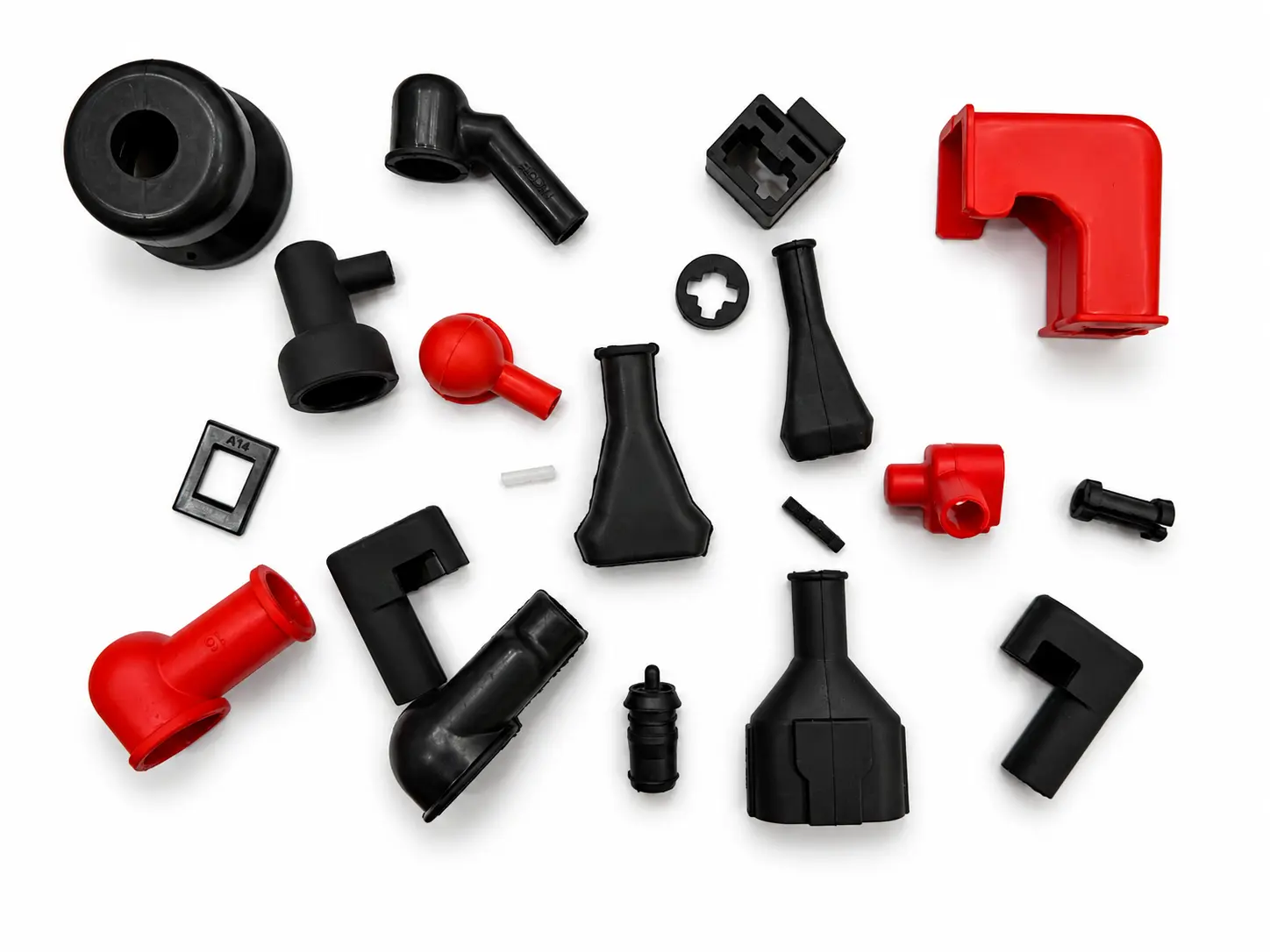

- Caps & plugs — protective rubber caps for HV connectors during assembly, transport, and service
- NVH parts — anti-vibration mounts, bushings, dampers, and cushioning pads for motor, battery, and chassis
- Specialty components — overmolded busbars, flame-retardant silicone parts, thermal conductive pads, adhesive-backed rubber parts
Why OEMs & Tier-1s Choose ARPL
- ISO 9001:2015 certified — full dimensional traceability and incoming material inspection
- In-house tooling — CNC & EDM tool rooms for rapid prototype-to-production turnaround
- Material expertise — EPDM, Silicone, Fluorosilicone, FKM, HNBR, NBR and specialty flame-retardant compounds
- Global supply — exporting to USA, Germany, UK, Japan, South Korea, Taiwan, UAE and 15+ countries
- 30+ years experience — established 1994, serving automotive OEMs and Tier-1 suppliers since inception
Manufacturing & Engineering Capabilities
We support EV programs with a manufacturing approach focused on repeatability, material performance and dimensional control. From compound selection to tooling strategy, we help you reach durability and sealing targets without over-design.
Material Options
- EPDM (−40°C to +150°C) — weathering resistance, water/steam sealing, long-life outdoor exposure. Ideal for battery enclosure gaskets exposed to road splash and UV.
- Silicone VMQ (−55°C to +200°C) — wide temperature range, excellent compression set. Used in battery pack gaskets where thermal cycling is severe.
- Fluorosilicone FVMQ (−55°C to +175°C) — combines silicone flexibility with fuel/oil resistance. Suited for seals near coolant lines and drivetrain interfaces.
- FKM / Viton (−20°C to +200°C) — superior chemical resistance to oils, fuels, and aggressive coolants. Used in high-temperature EV motor and inverter sealing.
- HNBR (−30°C to +150°C) — high mechanical strength with oil and ozone resistance. Excellent for dynamic seals and NVH components.
- NBR / Nitrile (−40°C to +120°C) — cost-effective oil resistance for general-purpose EV sealing applications.
What We Optimize For
- Low compression set — stable sealing force over thousands of thermal cycles (−40°C to +150°C range)
- Dimensional consistency — tight tolerances for groove-controlled assemblies and automated line fitment
- IP67/IP68 sealing — gasket geometry, compression ratio, and surface finish optimized for ingress protection targets
- Media resistance — validated against common EV fluids: glycol coolants, brake fluids, salt spray, road splash
- Flame retardancy — UL 94 V-0 rated silicone compounds available for battery compartment applications
- Production scalability — prototype (50 pcs) → pilot (1,000 pcs) → series production (100,000+ pcs/year)
Tooling & Process
- Compression molding — for gaskets, pads, dampers, and large-profile seals
- Transfer molding — for complex geometries and rubber-to-metal bonded parts
- Injection molding — for high-volume connector seals, wire seals, and precision parts
- In-house CNC & EDM tool room — tooling design, manufacture, and modification under one roof
EV Rubber Material Selection Guide
Use this comparison to shortlist the right elastomer for your EV application. Final selection depends on your specific environment, media exposure, and sealing targets — share your requirements and our engineering team will recommend the optimal compound.
| Material | Temp. Range | Best For | Chemical Resistance | Compression Set | Typical EV Use |
|---|---|---|---|---|---|
| EPDM | −40°C to +150°C | Weathering, water, UV, ozone | Excellent vs. water, steam, brake fluid; poor vs. oils | Good | Battery enclosure gaskets, charging port seals, exterior grommets |
| Silicone (VMQ) | −55°C to +200°C | Extreme temperature range, flexibility | Good vs. water, UV; poor vs. fuels and oils | Excellent | Battery lid gaskets, thermal pads, flame-retardant seals (UL 94 V-0) |
| Fluorosilicone (FVMQ) | −55°C to +175°C | Temperature extremes + fuel/oil contact | Good vs. fuels, oils, solvents; better than VMQ | Good | Coolant line seals, drivetrain interface seals, inverter gaskets |
| FKM (Viton®) | −20°C to +200°C | Aggressive chemicals, high heat | Excellent vs. oils, fuels, acids, coolants | Good | Motor seals, inverter O-rings, high-temp battery vent seals |
| HNBR | −30°C to +150°C | Mechanical strength + oil resistance | Very good vs. oils, coolants, ozone | Very Good | Dynamic seals, NVH mounts, high-load bushings |
| NBR (Nitrile) | −40°C to +120°C | Cost-effective oil resistance | Good vs. oils, fuels; poor vs. ozone and UV | Good | General-purpose O-rings, internal seals, cable grommets |
| NR (Natural Rubber) | −45°C to +80°C | High resilience, tear strength, NVH | Poor vs. oils and fuels; good vs. water | Good | Suspension bushings, motor mounts, anti-vibration pads |
EV & Energy Storage Applications
We supply rubber parts across every major EV subsystem. Actual part selection depends on your enclosure design, clamping strategy, and operating environment. Below are the most common application areas where ARPL components are deployed.
Battery Pack & Enclosure
- Battery lid/tray gaskets — form-in-place or compression-molded seals for IP67/IP68 ingress protection
- Vent seals & pressure relief valves — silicone and EPDM seals designed for controlled venting
- Service panel gaskets — quick-access cover seals for battery maintenance interfaces
- Thermal interface pads — conductive silicone pads between cells and cooling plates
HV/LV Electrical Systems
- Connector seals — single-wire and multi-cavity seals for HV and LV harness connectors
- Junction box gaskets — custom-profiled gaskets for BMS, PDU, and OBC enclosures
- Busbar insulation — overmolded rubber/silicone covers for high-voltage busbar protection
- Cable grommets — single and multi-hole grommets for harness pass-throughs
Thermal Management
- Coolant line seals — fluorosilicone and EPDM seals for glycol-based thermal circuits
- Heat exchanger gaskets — temperature-resistant gaskets for chiller and radiator assemblies
- Thermal gap pads — electrically insulative, thermally conductive silicone pads
NVH & Structural Isolation
- Motor mounts — anti-vibration mounts for EV traction motors and reduction gearboxes
- Battery cradle bushings — isolation mounts between battery pack and vehicle chassis
- Dampers & cushioning pads — cell-level and module-level shock absorption pads
- Suspension bushings — NR/EPDM bushings for control arms and stabilizer bars

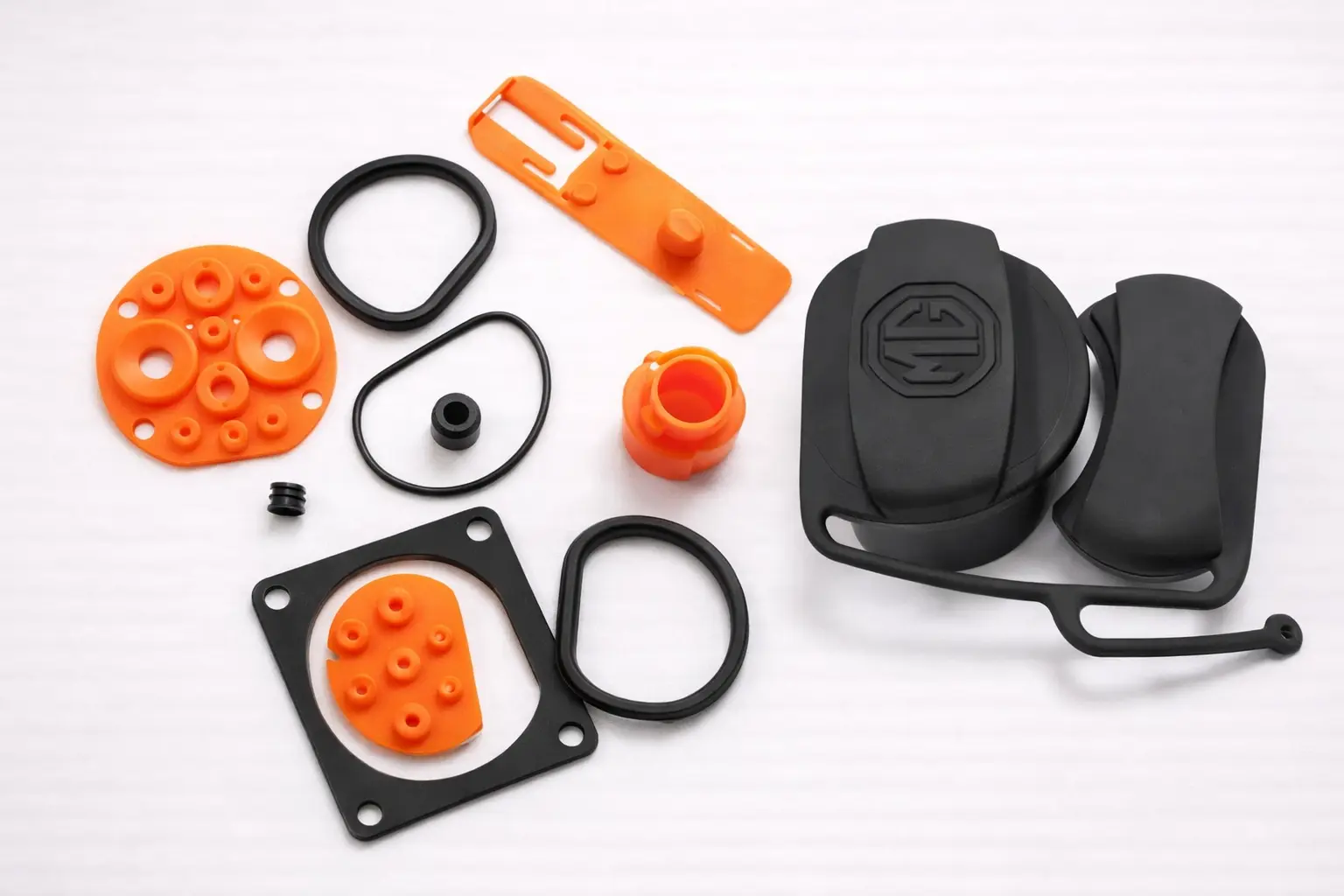

Charging Infrastructure
- Charging port gaskets — weather-sealed gaskets for AC/DC inlet assemblies
- EVSE enclosure seals — IP-rated gaskets for charging station housings
Share your target IP rating, temperature range, media exposure, and drawing tolerances — our team will propose the right elastomer and geometry for your EV program within 24 hours.
Request a Quote
Get a custom quote for your EV rubber component requirements
Related Products
Frequently Asked Questions
Quick answers for EV rubber components, sealing targets, materials and sourcing
We manufacture EV rubber components such as battery pack gaskets and seals, connector seals, wire seals, grommets, O-rings and custom rings, bellows/boots, caps/plugs, and NVH parts like anti-vibration mounts and bushings. Part selection depends on your subsystem and mating design.
Yes — sealing performance depends on gasket geometry, controlled compression, clamp design, surface finish, and the chosen elastomer. Share your target IP rating, groove details and environment so we can recommend an appropriate material and profile.
Common elastomers include EPDM (weathering and water resistance), silicone (VMQ) and fluorosilicone (FVMQ) for temperature extremes, and FKM/HNBR/NBR for media resistance. Final selection depends on temperature range, coolant/oil/salt exposure, and compression set targets.
Yes. Share your 2D/3D drawing, mating part details, tolerances, and functional requirements. We can propose tooling strategy, compound options and manufacturing feasibility for prototypes and series production.
Send the drawing (or sample photos with dimensions), expected monthly volumes, target material (if known), temperature range, media exposure (coolant/oils/salt spray), and target sealing requirement (e.g., IP rating). If you have a mating groove drawing, include it.
Yes. ARPL supports export supply for EV rubber components to major global hubs such as USA, Germany, UK, France, Italy, Netherlands, Sweden, Norway, Japan, South Korea, Taiwan, UAE, Saudi Arabia, Turkey, Canada, Mexico and Russia. Share your destination, Incoterms and compliance needs, and we will guide the next steps.
